Overview

ProductLine Import loads product line records into NeuronCx in bulk from a Google Sheet. It’s a legacy import type that uses a fixed two-column format — Id and Value — and writes directly against the records already set up for your institution in the InstitutionProductLine table. Use this import when you need to populate or refresh product line values in bulk, without touching any other entity type.
This is a legacy import type. It supports the Id | Value format only and does not support attribute columns. If you need to import entity records with additional attribute data, use Trx Attribute Entity Import (Type 11) instead.

​
Prerequisites

  • Your Google Sheet must be shared with edit access so NeuronCx can read from it.
  • The sheet must contain exactly two columns: Id and Value.
  • The Id values in your sheet must match existing records in the InstitutionProductLine table for your institution. This import does not create new product line definitions — it only writes values against ones already set up.

​
Preparing Your Sheet

Your sheet must follow this exact format. NeuronCx will reject or skip rows that don’t conform.
ProductLine Sheet Format
To find the correct IDs for your institution, check the InstitutionProductLine table filtered by your InstitutionId. Use only IDs that already exist — unrecognised IDs will be skipped.

​
Running the Import

​
Setting up a new import

1

Open Imports

Navigate to Home > Ontology > Attribute Settings & Bulk Edit, then click the Imports tab.
Imports Tab
2

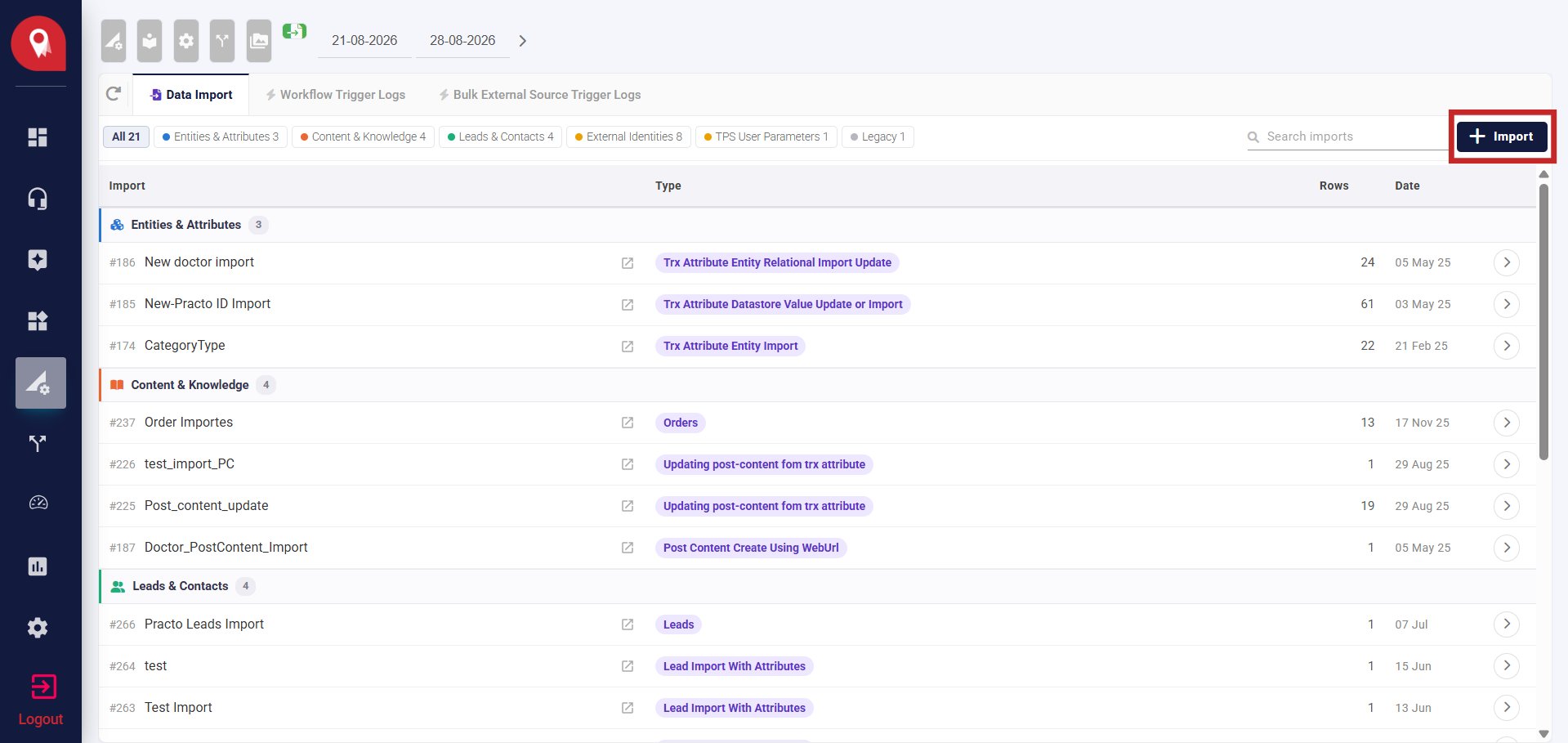

Click + Import

Click the + Import button in the top right to open the New Import modal.
Import Button 1
3

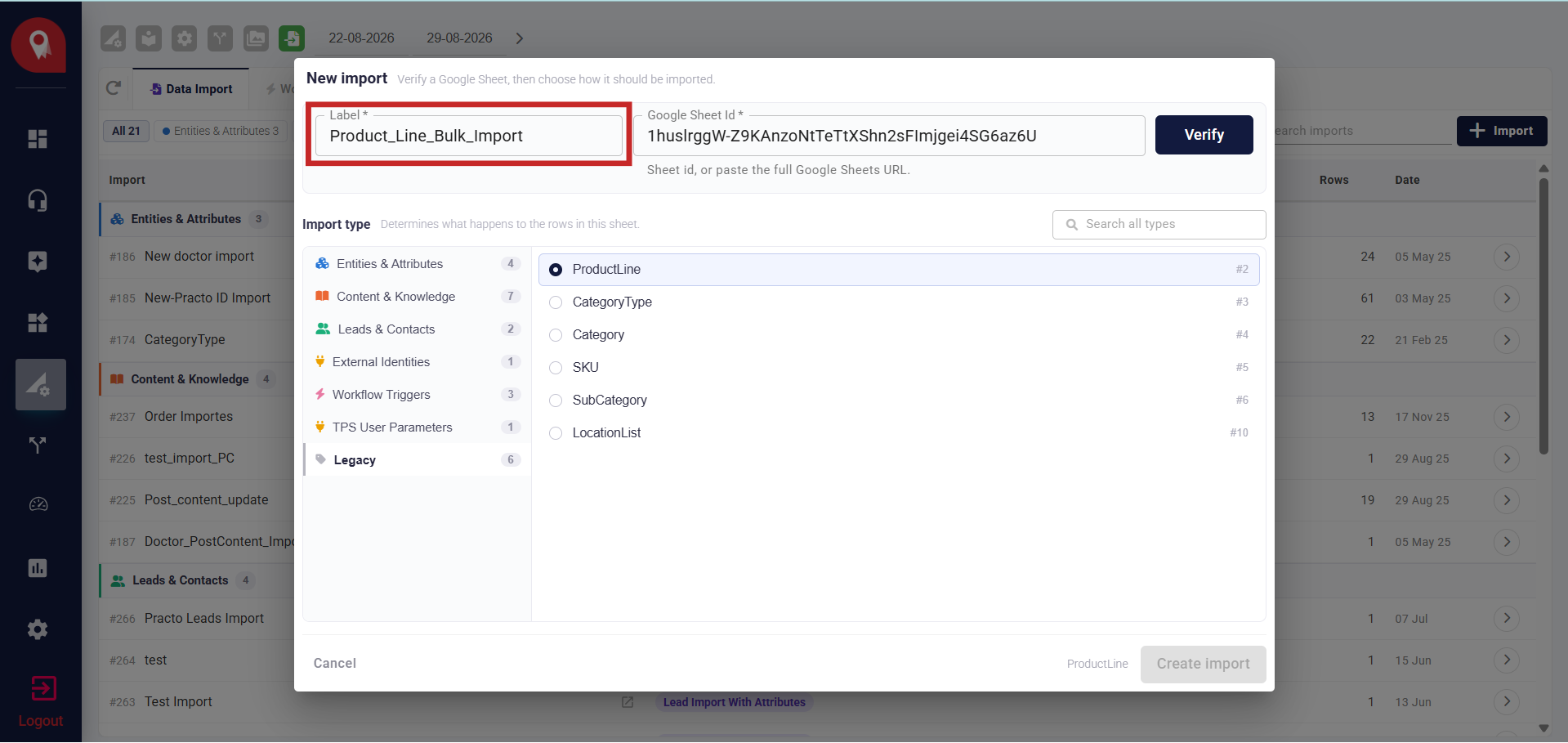

Give it a label

Enter a name that describes this import — for example, “Product Line Bulk Import.”Import Label
4

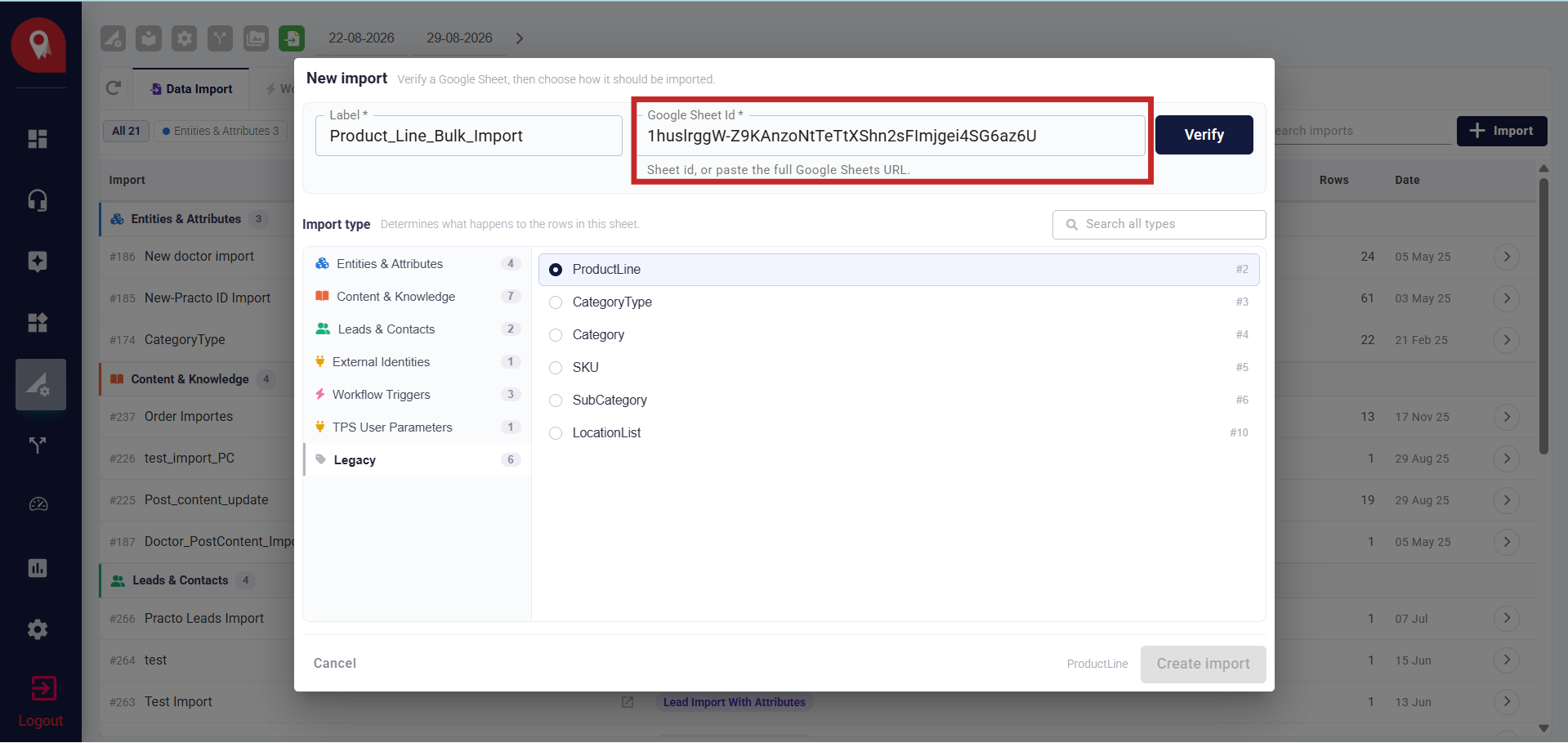

Add the Google Sheet ID

Paste the sheet ID or the full Google Sheets URL — NeuronCx will extract the ID automatically.
Google Sheet
5

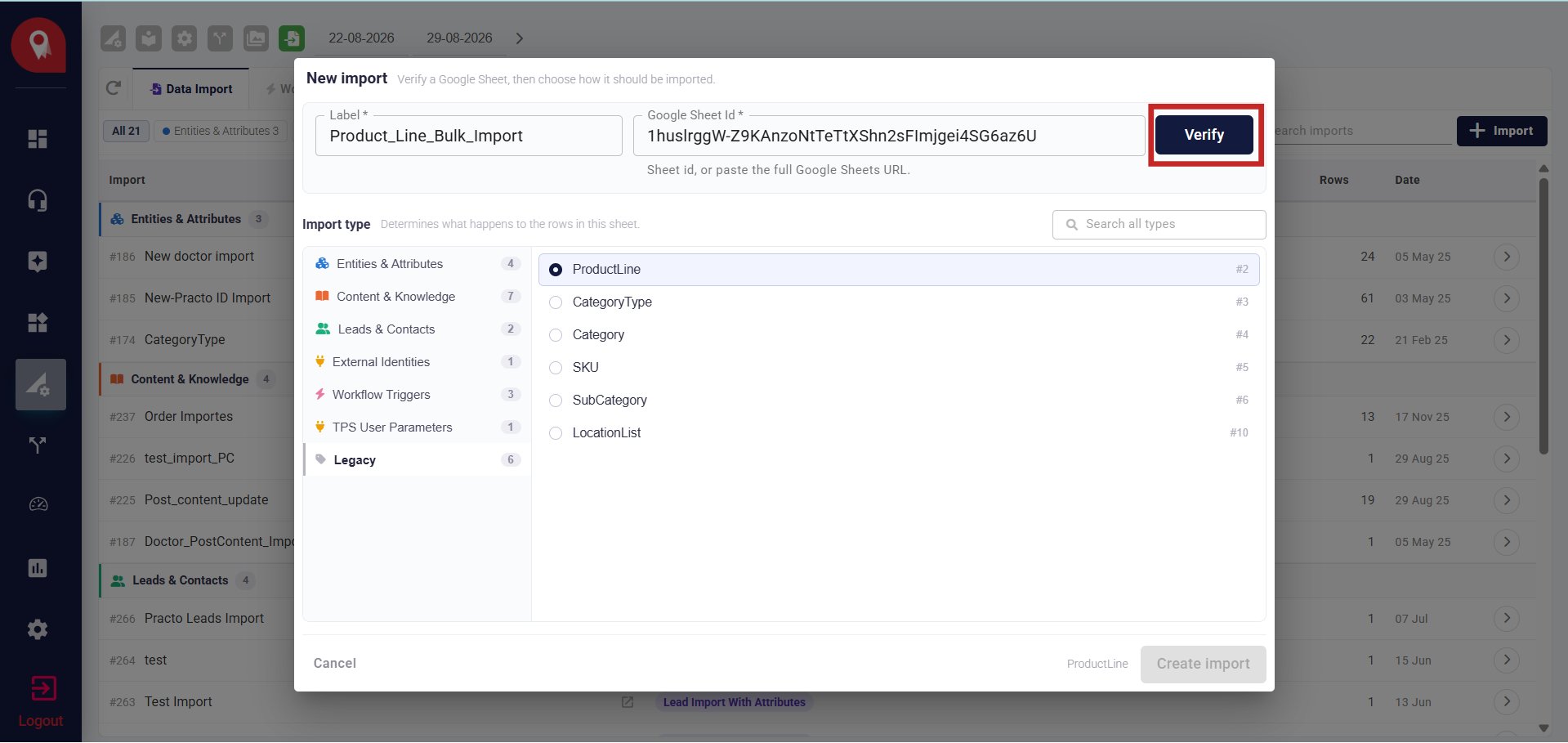

Verify

Click Verify. NeuronCx confirms it can read the sheet and shows you the row and column count — use this to catch an empty or wrong sheet before continuing.Verify 2
6

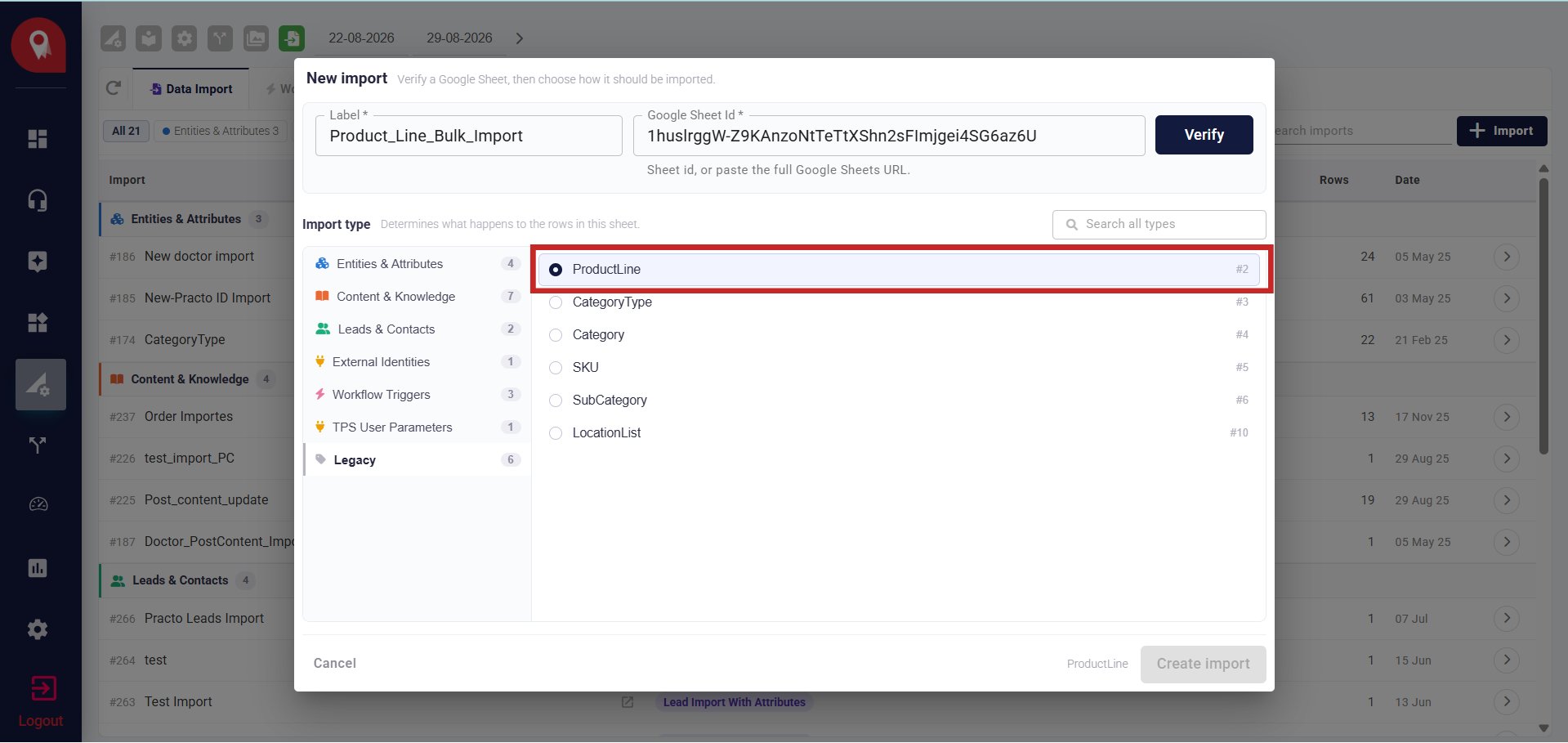

Select the import type

In the Import type panel on the left, select Legacy. Then choose ProductLine (#2) from the list on the right.
Select Import Type
7

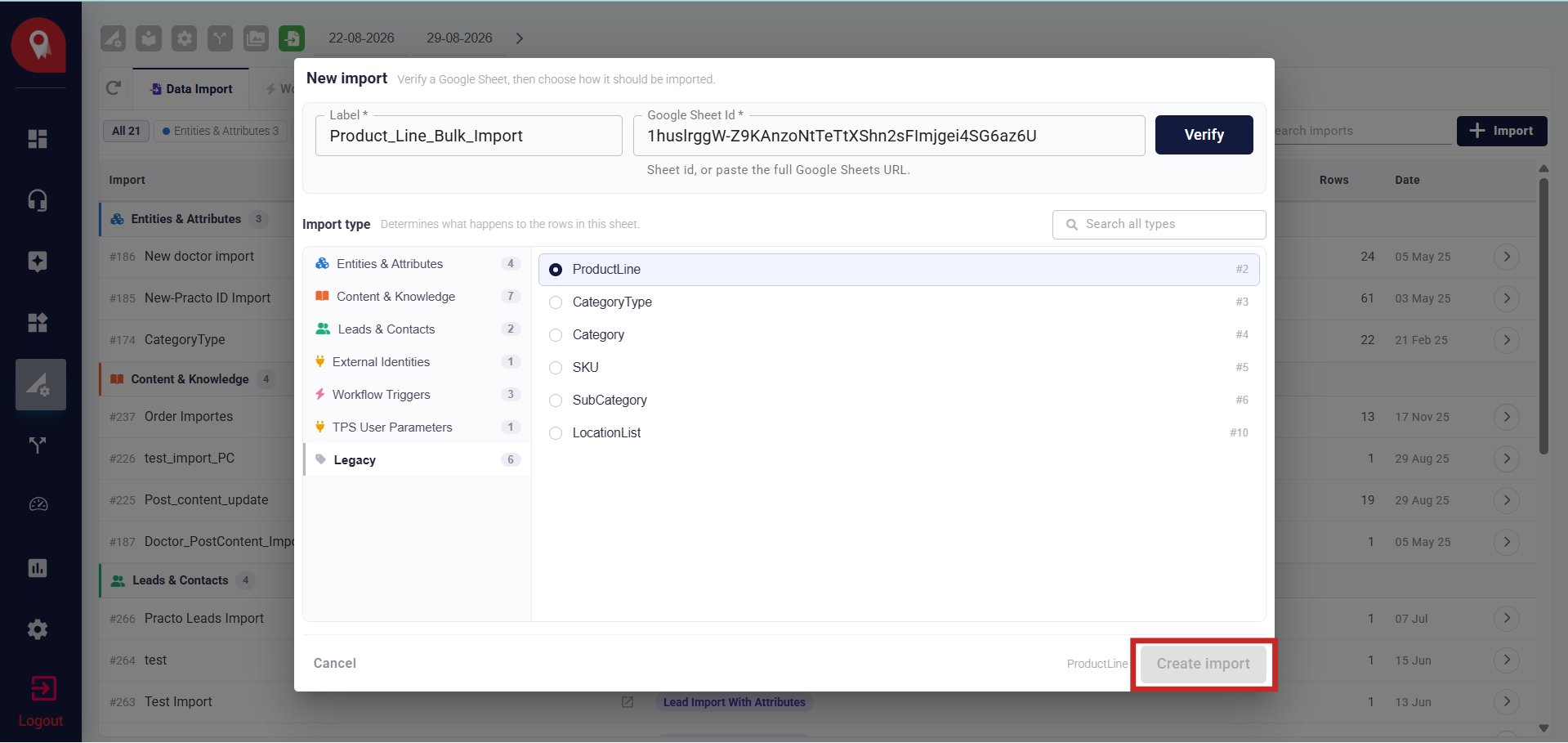

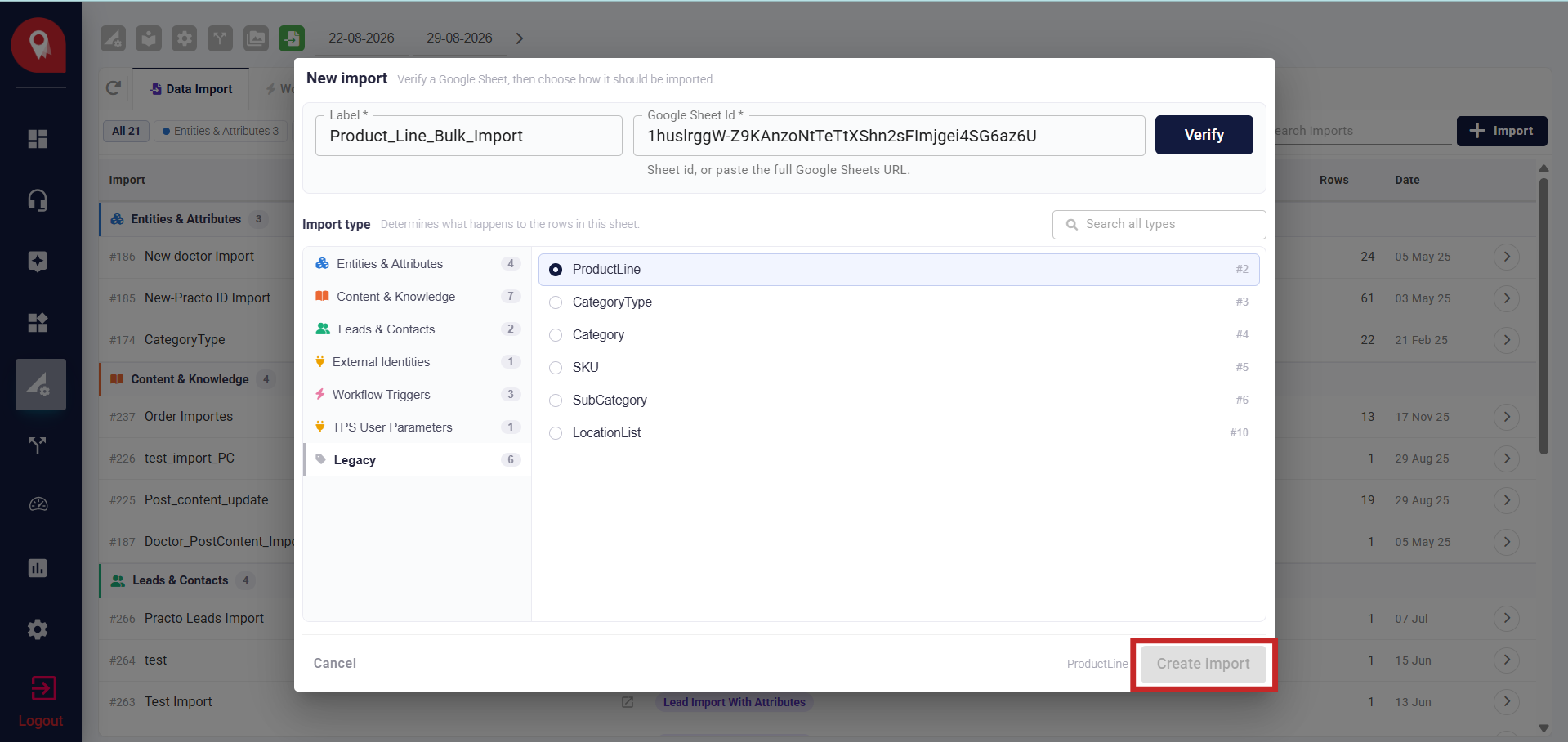

Create the import

Click Create import. The import now appears in your list under the Legacy category, ready to run.Create Import 1

​
Running the import

1

Find the import

From the Data Import list, locate the import you just created. You can filter by the Legacy tag to narrow the list.
2

Click Import

Click the arrow icon on the import row to open it, then click Import to run it.
Import Button

​
Checking the Result

Once the run completes, the history table shows how many rows were read and how many records were updated. Click a run’s Status to open a detailed breakdown showing which rows succeeded, failed, or were skipped. Re-running the same sheet is safe — it will re-apply values without creating duplicates.

​
Limits to Keep in Mind

  • This import supports the Id | Value format only. No additional columns are read or imported.
  • The Id in each row must match an existing record in InstitutionProductLine for your institution — rows with unrecognised IDs are skipped.
  • This import does not create new product line definitions. All IDs must be set up in the platform before running the import.
  • Only one import runs at a time. If another import is already running, this one will queue and wait its turn.
